L29 DMP Packer

Work versatility, inside waters west coast Canada, Washington, Golfo de Honduras.
High-speed planing under load.


Specifications
Length overall: 29'-2"
Length water line: Contact us!
Displacement: Contact us!
Max beam: 13'-11"
Max water line beam: Contact us!
Dead rise: 19.5°
Power recommendations: Twin Volvo 41 with surface drives.
Fuel capacity: Contact us!
Flotation: Contact us!
Hull & House
- Bottom plate…………1/4" 5086
- Side plate…….….3/16" 5086
- Polyurethane spray foam flotation.
- Self-bailing deck.
- Six (6) cast aluminum weld-on cleats.
- Cockpit side storage pockets.
- Deck area fwd standard house dimensions: 11'-2" X 12'-0".
- Five (5) safety glass windows.
- Side handrails and removable aft railing.
- Two (2) Z4-A hull zinc anodes.
- Endura non-skid deck coating.
- Painted dash and windshield area.
- Interlux antifouling bottom paint.
- Fuel tank size not available at this time.
- Four (4) Racor 500fg Fuel Filter Water Separator.
Features
- Cockpit side storage shelves - Two (2) Cockpit storage lockers.
- Navigation lights.
- Two (2) batteries.
- Blue Sea circuit breaker panel.
- Blue Sea battery selector switch.
- Four (4) Rule 1000 Bilge Pump and floater switch.
- Two (2) forward road locker.
- Helm seat single fold down.
- Two (2) ABC 5lb dry chemical fire extinguisher.
Power Recommendations:
- Two (2) Volvo 41 diesels with surface piercing drives.
Options
- Weld in house option #1 Southern House shown.
- Weld in house option #2 Northern House not shown.
- Weld in house option #3 Centre Console not shown.
- Bimminy Top.
- Raw water wash down pump and hose bib mounted in cockpit area.
- Cockpit under seat locker and or icebox with sink.
- Painted hull.
- Dive ladder.
- Stereo and speakers.
- Marine radio and antenna.
- Bolt in option #1 Rescue Module.
- Bolt in option #2 Dive Module.
- Your choice of gate hardware.

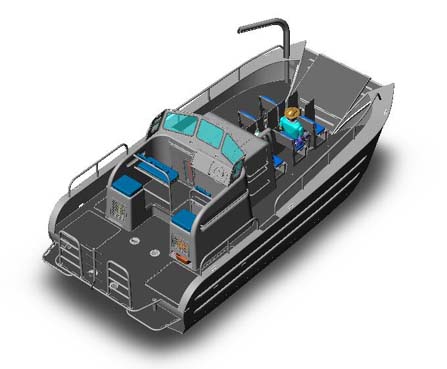

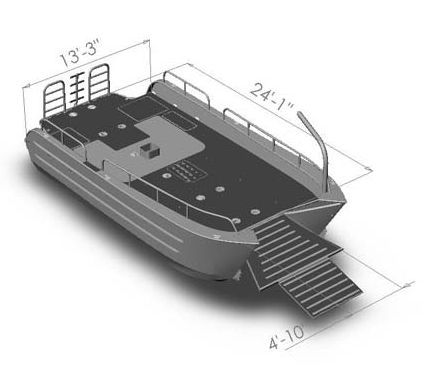

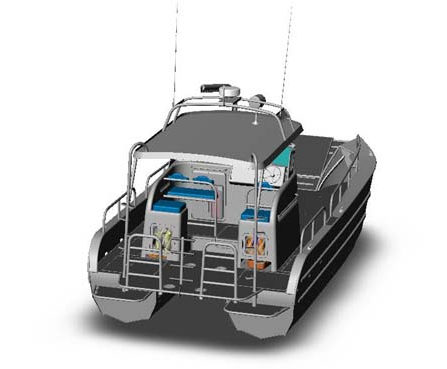

Click a picture of the L29 DMP Packer below to enlarge and see more details:

L29 DMP Packer - View #1 L29 DMP Packer - View #2
View 1 View 2
L29 DMP Packer - View #3 L29 DMP Packer - View #4 L29 DMP Packer - View #5 L29 DMP Packer - View #6
View 3 View 4 View 5 View 6
L29 DMP Packer - View #7
View 7
L29 DMP Packer - View #8 L29 DMP Packer - View #9
View 8 View 9
L29 DMP Packer - View #10 L29 DMP Packer - View #11
View 10 View 11




L29 DMP PackerL29 DMP PackerL29 DMP PackerL29 DMP Packer
More L29 DMP Packer Details:
