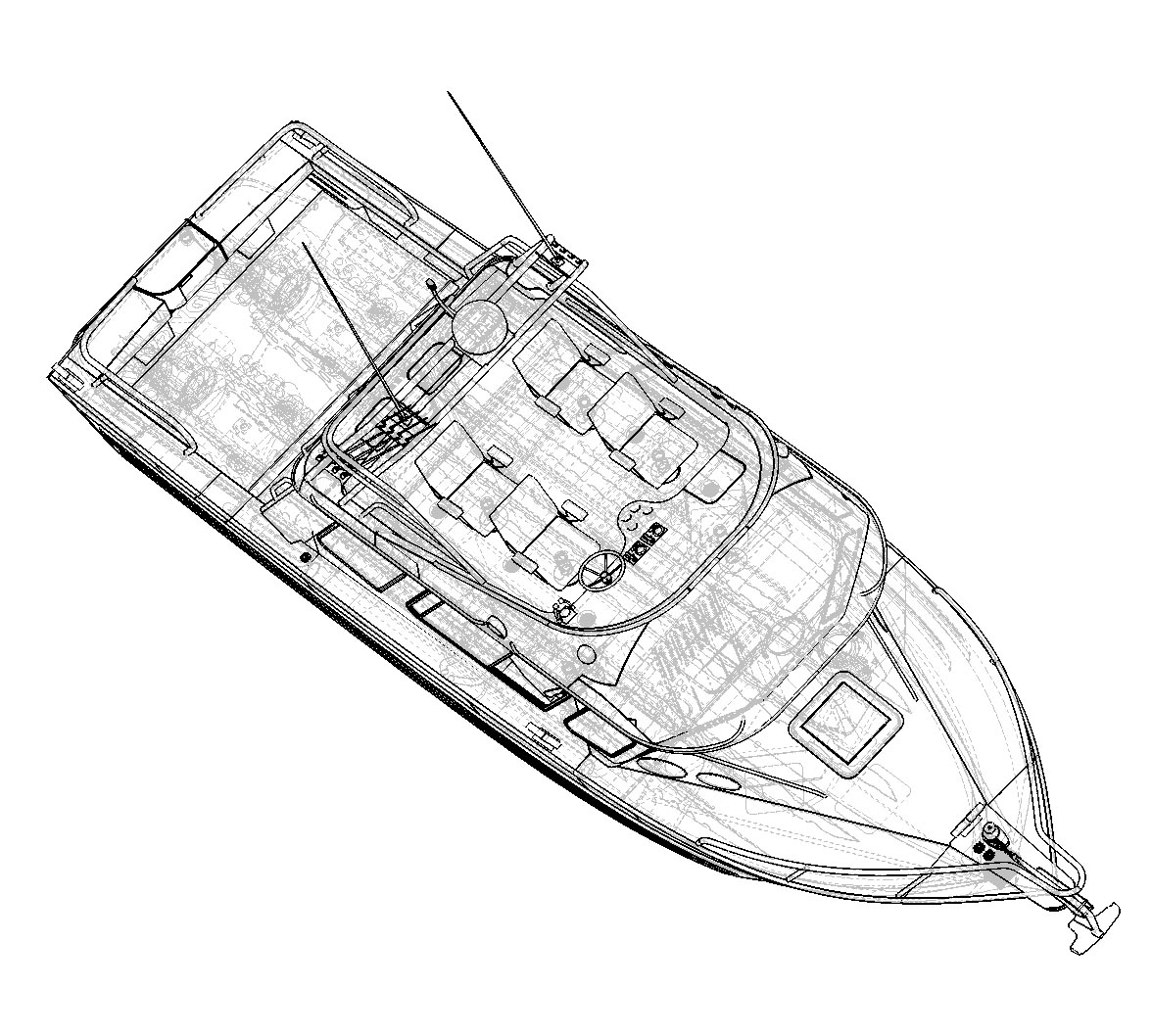

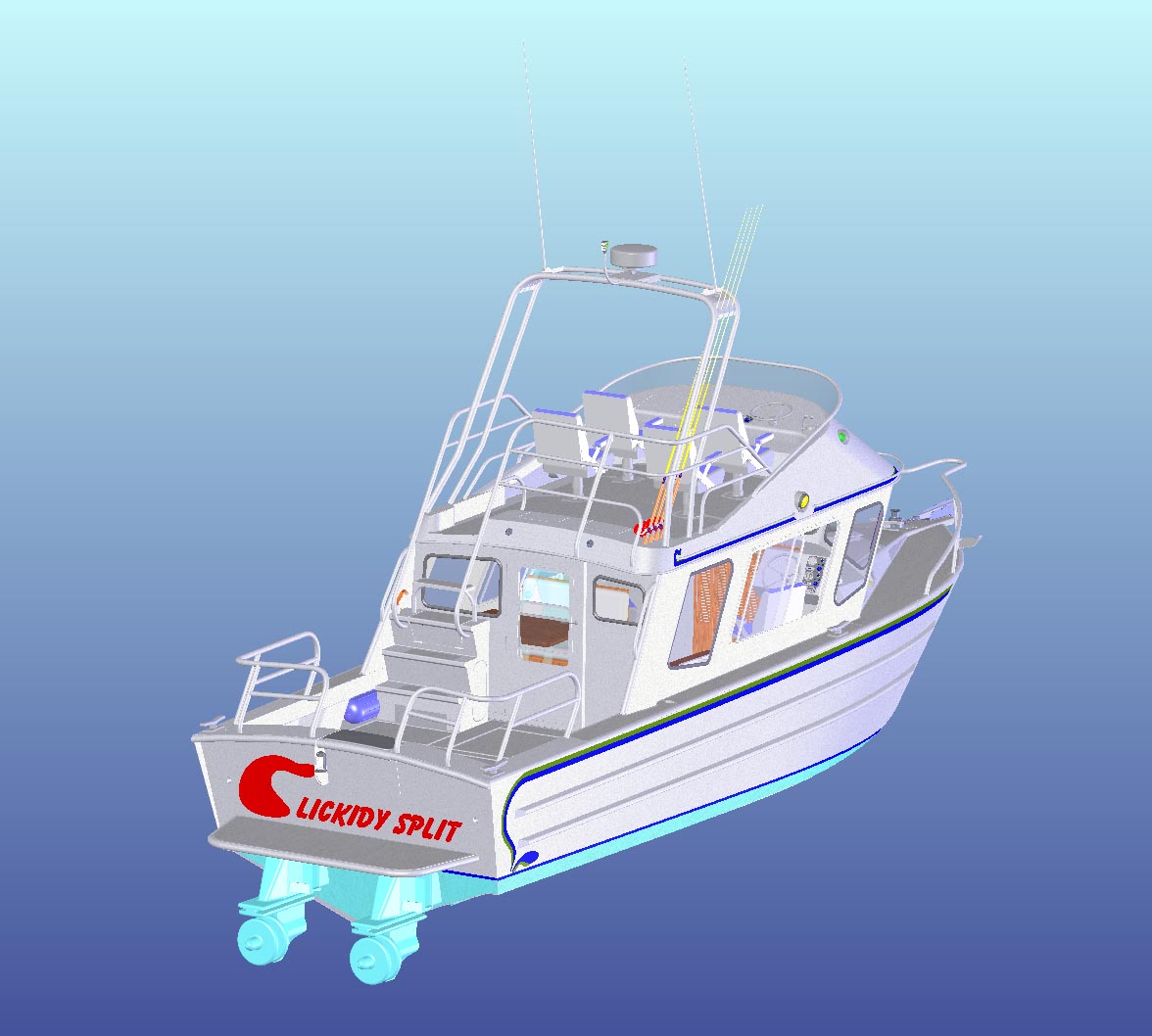

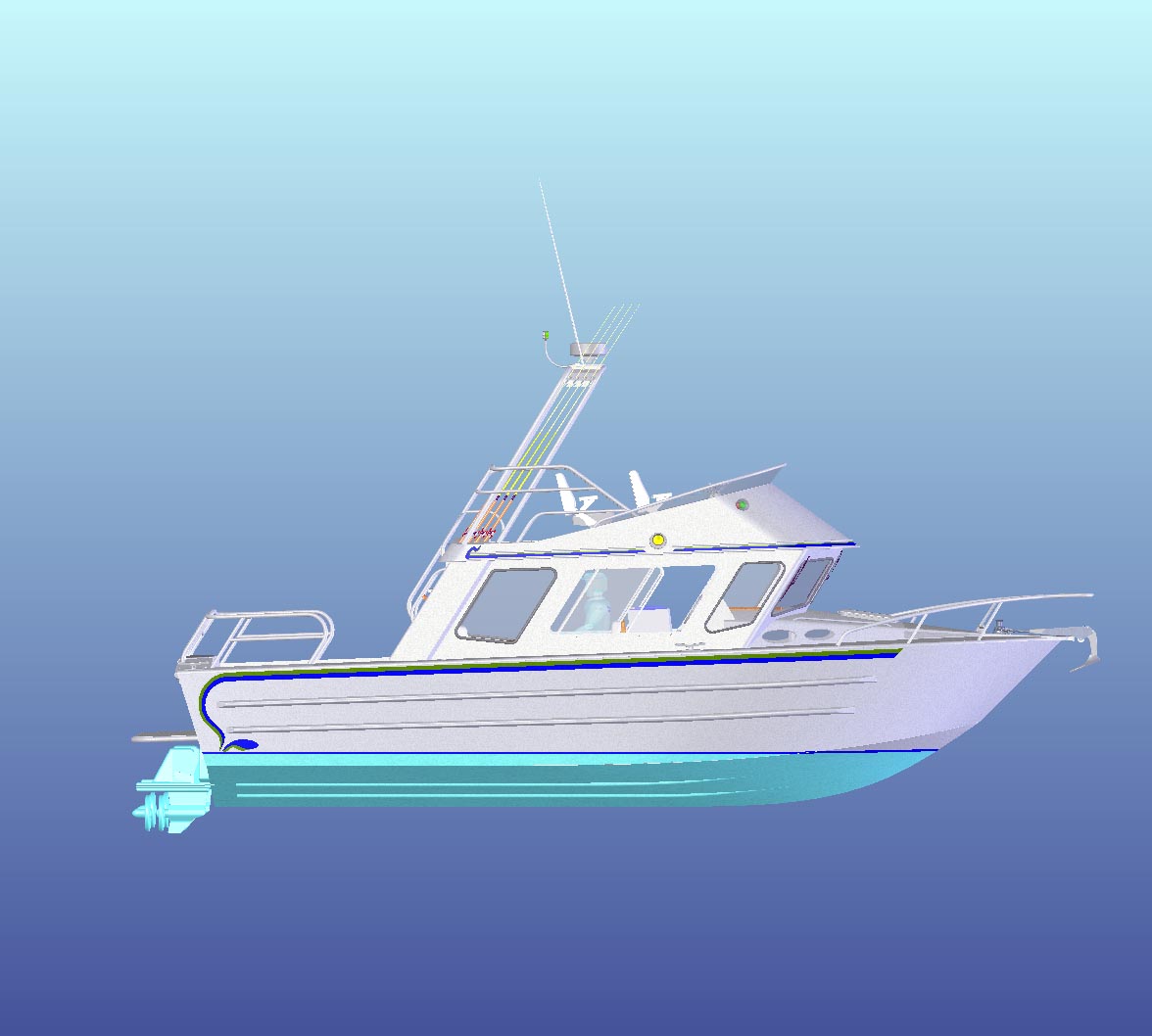

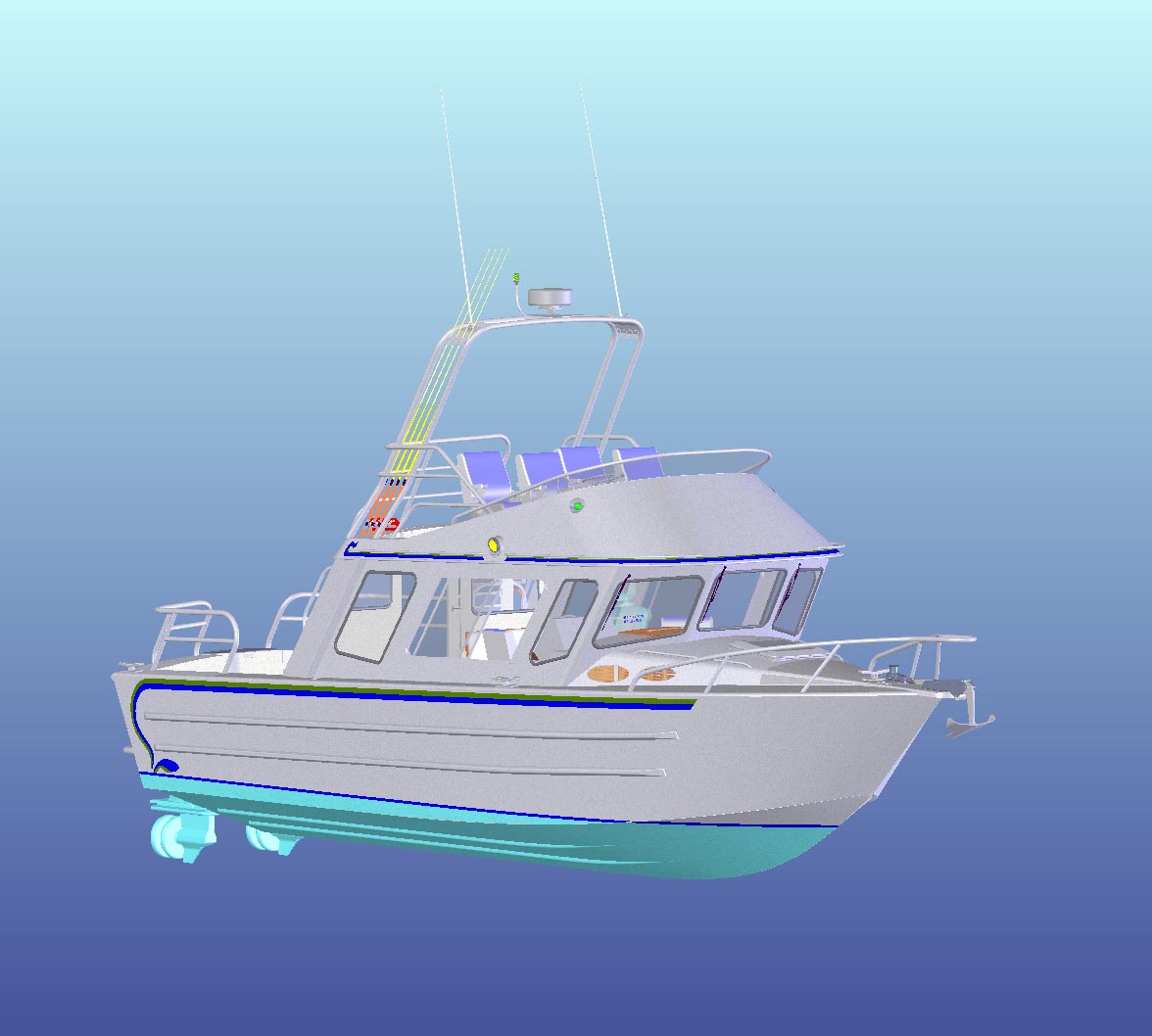

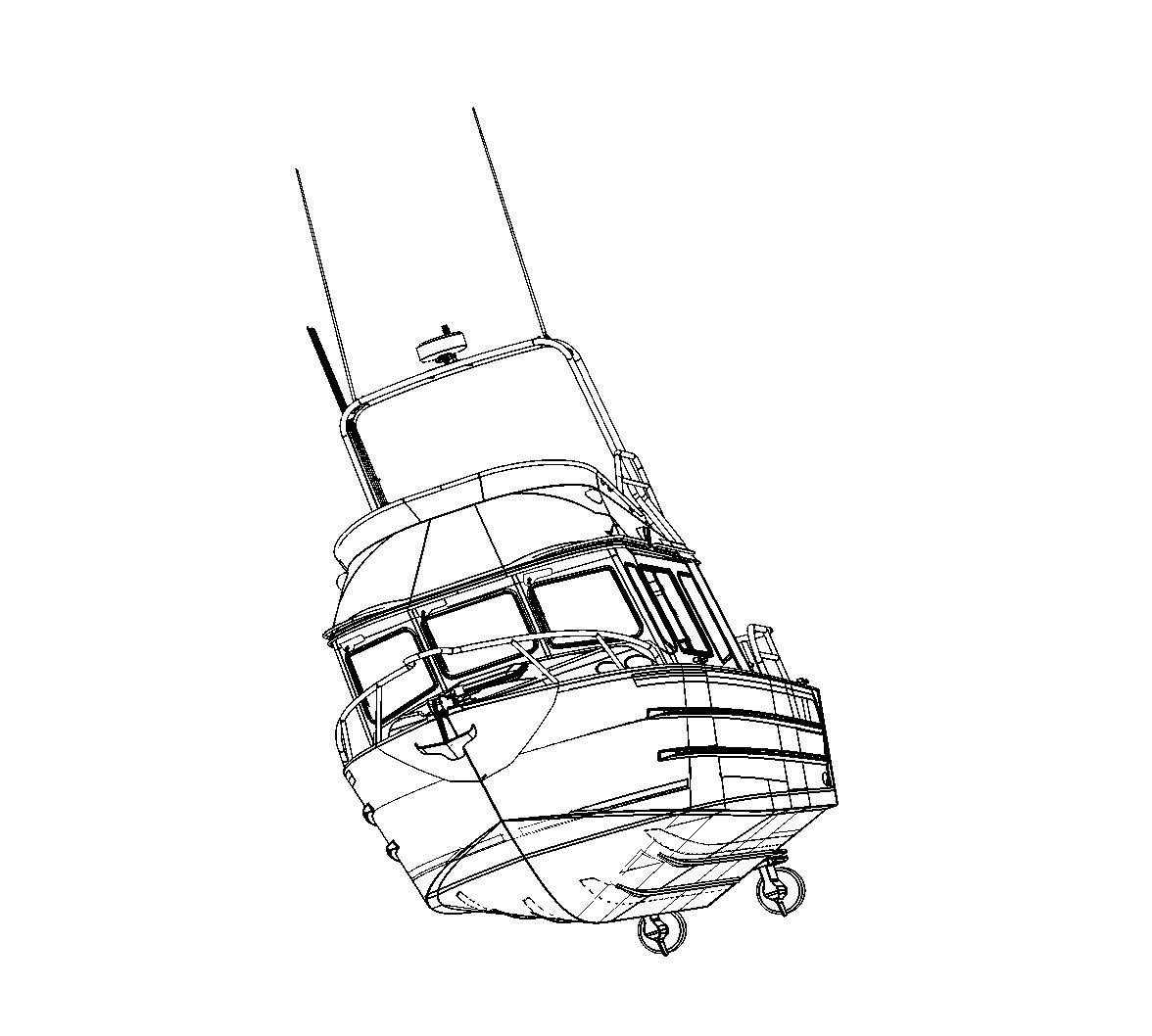

Introducing the J32F

Traditional west coast aluminum planing powerboat styling.
Length overall: 32'-6"
Length water line: Contact us!
Displacement: Contact us!
Max beam: 10'-2"
Max water line beam: Contact us!
Power recommendations: two (2) Volvo I/O
Fuel capacity: 120 Imperial, 144 U.S. gallons.
Flotation: Positive buoyancy contact us!
Hull & House
-Bottom plate…………1/4" 5086
- Side plate…….….3/16" 5086
- Polyurethane spray foam insulation.
- Self-bailing deck.
- Five (5) 12" cast aluminum weld-on cleats.
- House side hand rails, aft deck rails bow rails.
· Four (4) Z4A hull zinc anodes.
- Endura non-skid deck coating.
- Interlux antifouling bottom paint.
- Four (4) Racor 500fg Fuel Filter Water Separator.
- Dual helm stations.

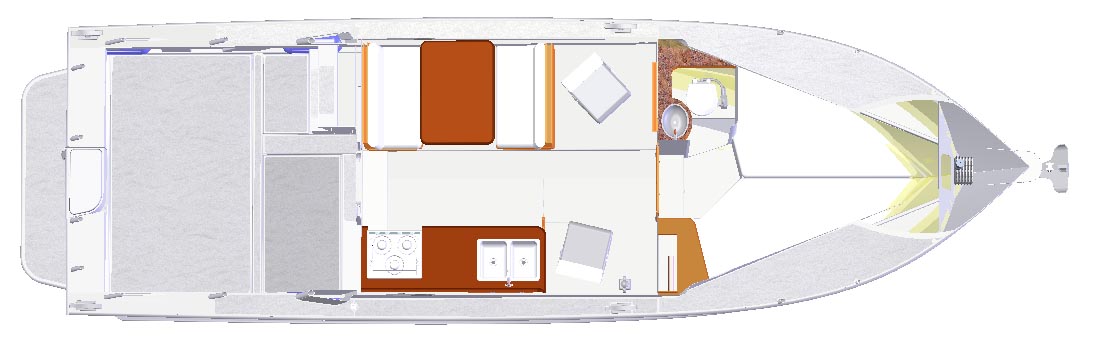

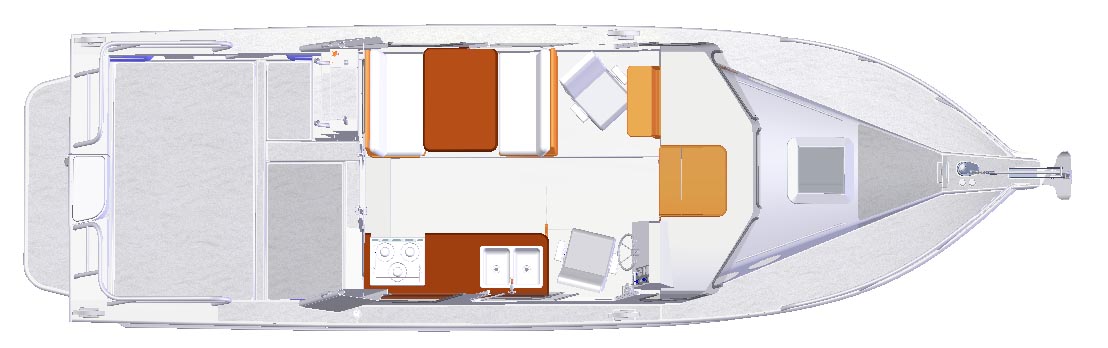

- Large main cabin with galley, settee, interior
navigation and helm station.
- Master foaksil cabin, main cabin settee
double berth.
- Head/shower port folksil.
- Folksil Bomar hatch.
- Two (2) Diamond / Sea-Glaze opening
windows and one door.
- Five (5) safety glass fwd windows.
- Four (4) aft windows.
- Aft swim grid and door.
- Two (2) Rule 1000 & bilge pumps &
floater switches.
- Two (2) aft deck storage lockers, contact
us for size.
- Two (2)-5lb Fire Extinguisher.

Design Intent:

Coastal Cruiser, 32'X10', Sleeping for 4, galley pack, head and shower, planing, sea kindly performance cruiser.
