J17 Fisherman

A comfortable guide style centre console boat with ample stability for 4 persons to enjoy fishing.


Specifications:
  • Length overall: 17'-4 ˝"
  • Length water line: Contact us!
  • Displacement: Contact us!
  • Max beam: 8'-6"
  • Max water line beam: Contact us!
  • Dead rise: 18°
  • Power recommendations: 100 to 150 hp.
  • Fuel capacity: Contact us!
  • Flotation: Contact us!
Hull & House:
  • Bottom plate…………1/4" 5086
  • Side plate…….….3/16" 5086
  • Polyurethane spray foam flotation.
  • Self-bailing deck.
  • Five (5) cast aluminum weld-on cleats.
  • Cockpit side storage shelves.
  • Deck area dimensions: 11'-9" X 7'-8"
  • Lexan polycarbonate window.
  • Rear deck and side handrails.
  • Two (2) Z4-A hull zinc anodes.
  • Endura non-skid deck coating.
  • Painted dash.
  • Interlux antifouling bottom paint system.
  • Racor 500fg Fuel Filter Water Separator.

Features:

  • Cockpit side storage shelves.
  • Navigation lights.
  • Two (2) batteries.
  • Blue Sea circuit breaker panel.
  • Blue Sea battery selector switch.
  • Rule 1000 Bilge Pump and floater switch.
  • Forward road locker.
  • Console seat with icebox and drink holders.
  • ABC 5lb dry chemical fire extinguisher.
  • Aft storage lockers.
  • Bilge blower system.

Power Recommendations:

  • 100 to 150 hp outboard.

Options:

  • Raw water wash down pumps and hose bib mounted in cockpit area.
  • Downrigger mount plates.
  • Scotty Downrigger with electric power sockets.
  • Live bate well.
  • Live well.
  • Painted hull.
  • Dive ladder.
  • Stereo and speakers.
  • Marine radio & antenna.
  • Console doors.
  • Flush folding pneumatic forward seats.

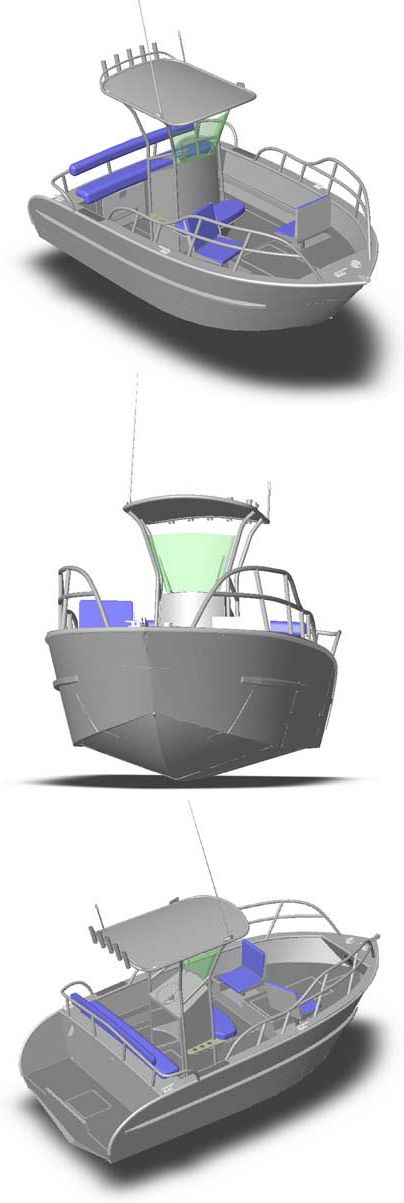

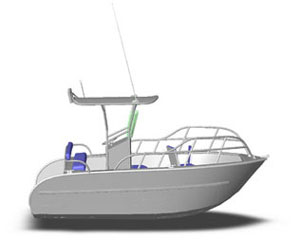

J17 Fisherman



J17 Fisherman
